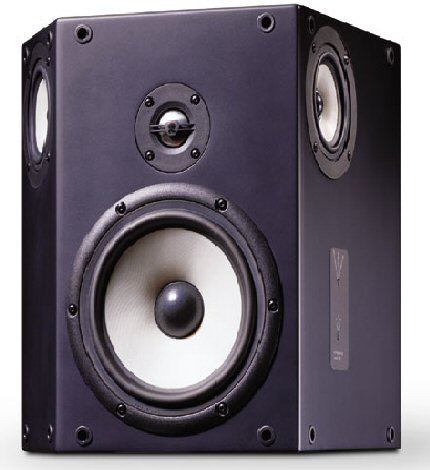

The Performa S30 Surround Speaker The versatile four-driver S30 surround speaker offers unmatched surround sound envelopment for both motion picture soundtracks and discrete multi-channel music recordings, providing a choice of dispersion patterns for optimum listening enjoyment. For movie soundtracks, the S30 provides, in its dipole mode, a diffuse sound field, enveloping the audience in an expansive, ambient surround environment, while minimizing speaker localization even with a large number of listeners. For discrete music recordings, the S30 features a monopole mode, providing the pinpoint imaging that discrete music surround mixes demand. The dispersion mode can be manually selected or activated remotely (depending on system configuration). Featuring a high output 6.5-inch woofer and a 1-inch metal dome tweeter, the S30 is also equipped with two 4-inch full-range drivers with dispersion characteristics optimized for consistent sound throughout the listening area. The handsome cabinetry features angled baffles in a stylish three-panel configuration and can be wall or ceiling mounted using the integrated mounting system for maximum flexibility. The S30’s timbre is carefully tailored to blend seamlessly with all of the Performa loudspeakers, with extended and airy high frequency response to beyond 20kHz. As with other Performa models, each S30 is hand-tuned to match the target response of the production reference standard to within a fraction of a decibel, providing unmatched unit-to-unit consistency and outstanding tonal accuracy

Sensitivity: 90 dB SPL, with 2.83 V rms @ 1 m (2 pi anechoic)

Impedance: Monopole Mode: 6 ohms (nominal), 3 ohms (min.) @ 3.6 kHz Dipole Mode: 6 ohms (nominal), 3 ohms (min.) @ 355 Hz Filters (crossover): Monopole Mode: 2-way, high-order, in-phase @ 2.5 kHz Dipole Mode: 2-way, high-order @ 250 Hz

In-room Frequency Response: Monopole Mode: ± 1.5 dB from 90 Hz to 16 kHz

In-room response relative to target response: ± 0.75 dB from 80 Hz to 20 kHz

First-reflections Response: Monopole Mode: ± 1.75 dB from 88 Hz to 14 kHz

Listening Window Response: ± 1.5 dB from 90 Hz to 18 kHz

Low Frequency Extension: -10dB @ 50Hz -6dB @ 65Hz -3dB @ 80Hz

Dimensions: width: 14.187" (36.1cm) height: 12.5" (31.7cm) depth: 8.375" (21.2cm) including grille

Shipping Weight: 36 lbs. (16kg) per pair net (without packing)

18 lbs. (8kg) individual net (without packing)
